GBM-ITG-Micro Gripper (ITG)
Slim-body Design
Compact Size with Large Stroke
Adaptive Gripping
Slim-body Design
Compact Size with Large Stroke
Adaptive Gripping
| Item | Parameters | ||
|---|---|---|---|

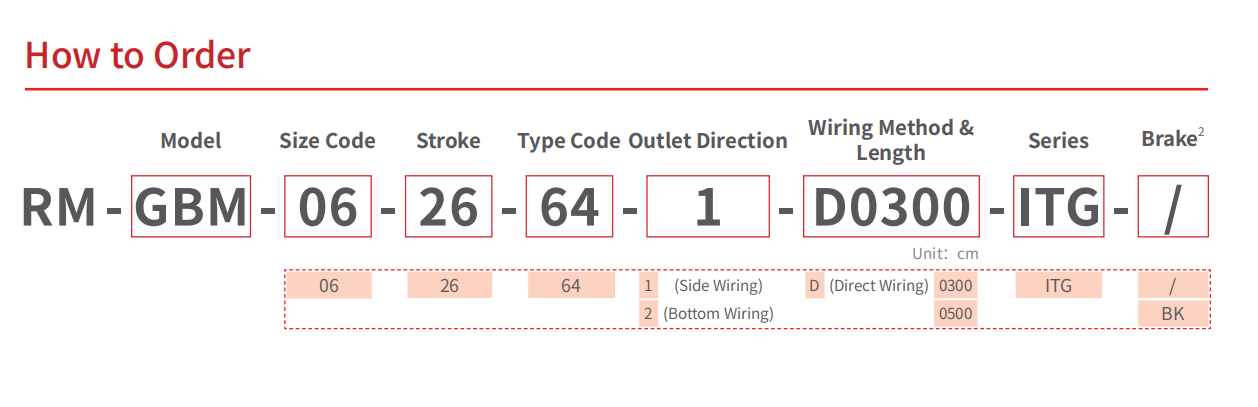

| Model | Model | RM-GBM-06-26-64-ITG | |
| Size Code | 06 | ||
| Weight (kg) | 0.4 | ||
| Dimensions (mm) | 95*55*29 | ||
| Performance | Stroke (mm) | 26 | |
| Max.gripping Force¹ (N) | 50 | ||
| Repeat Positioning Accuracy (mm) | ±0.02 | ||
| Max.opening/closing Time (s) | 0.45/0.45 | ||

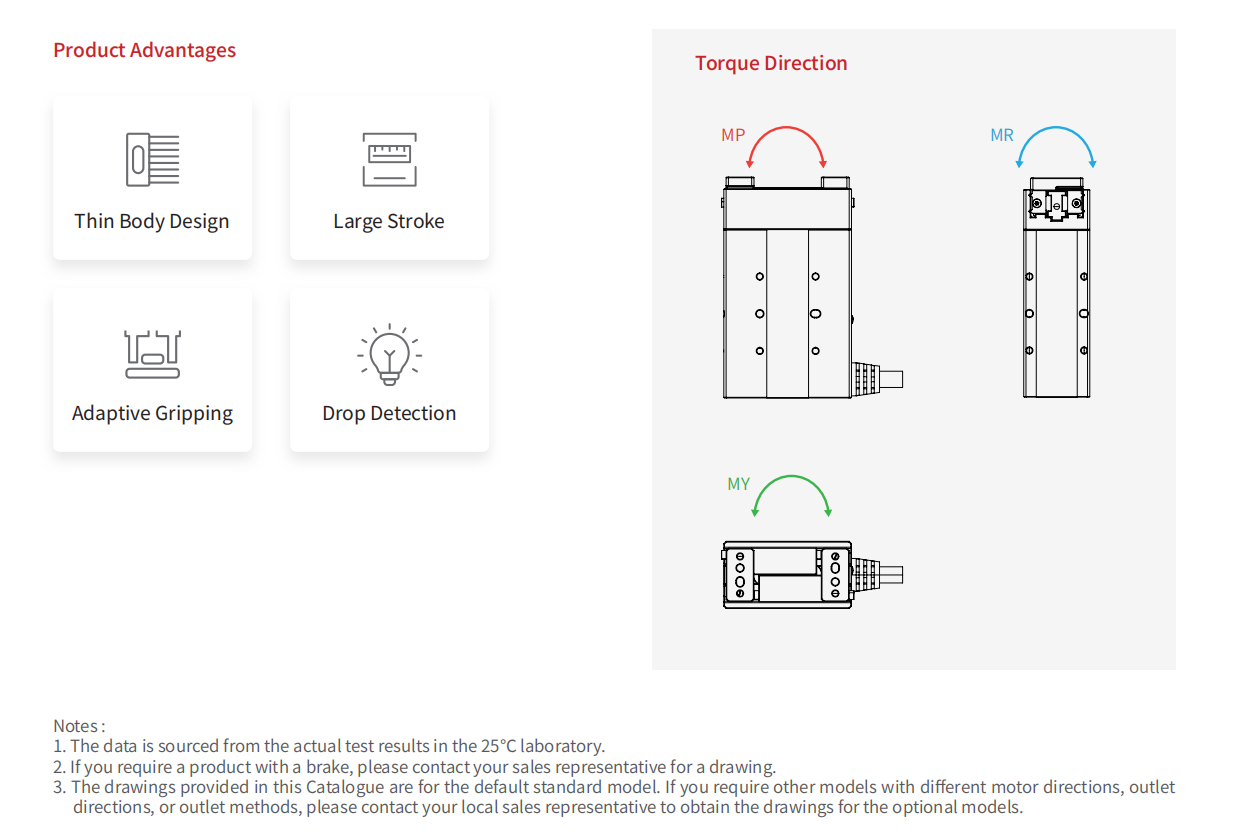

| Permissible Load Torque (N.m) | MR: 2.5, MP: 2, MY:3 | ||
| Control Method | Controller | Controller Built-in | |
| Control Method | Bus | Modbus RTU | |
| Interface | I/O | ||
| I/O Interface | Input 3 Points(NPN), Output 3 Points(NPN) | ||
| Operating Environment | Rated Voltage (V) | 24±10% | |
| Rated Current (A) | 1 | ||
| Usage Environment | 0~40°C, < 85%RH (Without condensation) | ||
| Protection Class IP | IP40 | ||
