RM-SLA-HF——SoftForce Straight Linear Actuator
Can be Installed Side-by-side
High positioning repeatability
Adaptive Pushing
Can be Installed Side-by-side
High positioning repeatability
Adaptive Pushing
| Item | Parameters | |||
|---|---|---|---|---|
| RM-SLA-11-50-2-HF | RM-SLA-11-100-2-HF | |||
| Model Description | Model | RM-SLA-11-50-2-HF | RM-SLA-11-100-2-HF | |
| Size Code | 11 | 11 | ||
| Weight (kg) | 0.8 | 1.0 | ||
| Dimensions (mm) | 275*35.5*35 | 325*35.5*35 | ||
| Performance | Stroke (mm) | 50 | 100 | |
| Lead (mm) | 2 | 2 | ||
| Max.speed (mm/s) | 100 | 100 | ||
| Max.vertical Load Mass (kg) | 1.5 | 1.5 | ||
| Repeat Positioning Accuracy (mm) | ±0.02 | ±0.02 | ||
| Linear Actuator Anti-rotation Accuracy (°) | ±1.5 | ±1.5 | ||
| Control | Compatible Controllers | RM-CEPF-20,RM-C-20-F, RM-CEMF-55 | ||
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | |||
| Supporting Control Modes | I/O, Pulse Control (Excluding RM-CEMF-55 Controller) | |||
| Operating Environment | Rated Voltage (V) | DC24±10% | DC24±10% | |
| Rated Current (A) | 2 | 2 | ||
| Usage Environment | 0~40°C, < 85%RH (Non-condensing) | 0~40°C, < 85%RH (Non-condensing) | ||
| Protection Class IP | IP40 | IP40 | ||
| Size Code | Stroke (mm) | Closed-loop Output Range (N) | ||
|---|---|---|---|---|
| HF50-001 | HF100-010 | HF200-020 | ||
| 11 | 50,100 | 0.2 ~ 49.8 | 1.1 ~ 98.9 | 2.1 ~ 197.9 |

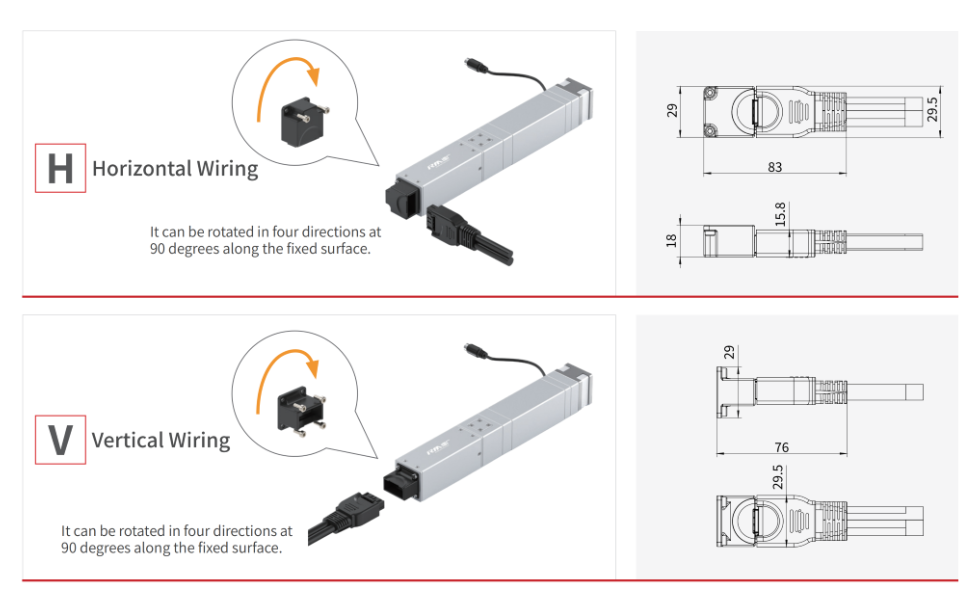

1. The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawing.
2. If you require a product with a brake, please contact your sales representative for a drawing.
The RM-SLA-HF SoftForce Straight Linear Actuator features side-by-side installation capability, high positioning repeatability (±0.02mm), and adaptive pushing function. It supports multiple bus protocols and control modes for flexible integration into automation systems.
The RM-SLA-HF supports multiple bus protocols including Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, and CANopen. It also supports I/O and Pulse Control modes (excluding RM-CEMF-55 Controller).
The RM-SLA-HF has a repeat positioning accuracy of ±0.02mm and linear actuator anti-rotation accuracy of ±1.5°, ensuring precise and reliable positioning performance.
Yes, the RM-SLA-HF is designed to support side-by-side installation, making it ideal for applications requiring multiple actuators in compact spaces.
The RM-SLA-HF has a maximum speed of 100 mm/s and can handle a maximum vertical load mass of 1.5 kg, suitable for various automation applications.
The RM-SLA-HF is compatible with RM-CEPF-20, RM-C-20-F, and RM-CEMF-55 controllers, providing flexible control options for different application requirements.
The adaptive pushing function allows the actuator to adjust its force output based on the resistance encountered, providing intelligent force control for delicate operations and preventing damage to workpieces.
